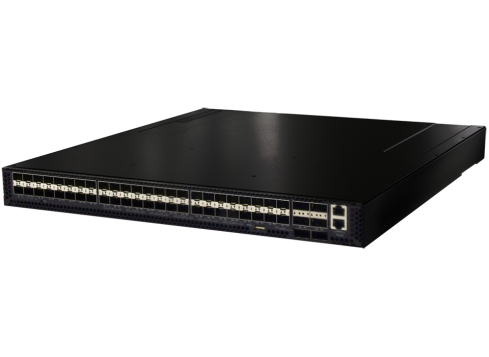

AS5710-54X

AS5710-54X

Edgecore Network Connectivity Open Networking

10GBE DATA CENTER SWITCH



  • Cost-effective, bare-metal switch infrastructure for data center fabric.
  • 48 x SFP+ switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX).
  • 6 x 40 QSFP switch ports, each supporting 40GbE (DAC, 40GBASE-SR4/LR4) or 4 x 10GbE (DAC or fiber breakout cable).
  • Port Grouping to group 4 x 10G ports into one 40G port at the physical layer for maximum bandwidth utilization, and for 300m optical reach over MMF (Subject to NOS options).
  • Full line-rate Layer 2 or Layer 3 forwarding of 720 Gbps.
  • VXLAN and NVGRE tunneling support in hardware for network virtualization.
  • Rack mountable in standard 19" racks. Mountable in 21" Open Rack with the Open Rack Switch Adapter.
  • Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.
  • All ports on front; PSUs, fan modules on rear.
  • Hot-swappable, load sharing, redundant AC or -48 VDC PSUs. 12 VDC power input option.
  • Hot swappable 4+1 redundant fan modules.
  • Management: Ethernet and console RJ-45 ports; USB storage port.
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
Ports 48
Predominant Port Type 10GbE SFP+
High Availability Redundant Power Supply
Redundant Fans
Compatible Software Option Big Switch Networks - Big Monitoring Fabric
Big Switch Networks - Big Cloud Fabric
Open Compute Project - Open Network Linux

Open Networking 10G

AS5700 Series: AS5710-54X
