SwiftWing Procyon FT

SwiftWing Network Monitoring & Capturing Network Capture & Data Storage



Anything less is not meaningful, anything more is redundant.
Originating from Ota, Tokyo, the SwiftWing Series has enjoyed great success since its introduction in 2003.

procyon
This series of products is commonly referred to as packet broker.
Ethernet frames forwarded to each port from an external device can be forwarded to any multiple ports in the device.
In addition, filtering, VLAN address modification, addition, and deletion can be easily performed via the GUI by using the header contents in the packet as a key.
It has a send-back warranty for 5 year.

procyon-overview

    Easy operation with Web GUI
    • Intuitive and simple user interface with just mouse control for most of the major settings such as port groups, paths, statistics, etc.
    • Operation screens are bilingual in English and Japanese
    • Switch between GUI and CLI modes
    Proxy ARP and GRE Tunneling Functions
    Remote Management

    • SNMP monitoring（port status, trap）
    • Remote Syslog
    Filter Function
    • Ethernet Type
    • MAC Address
    • VLAN ID
    • IPv4, IPv6
    • MPLS, etc.
    Five years send-back warranty

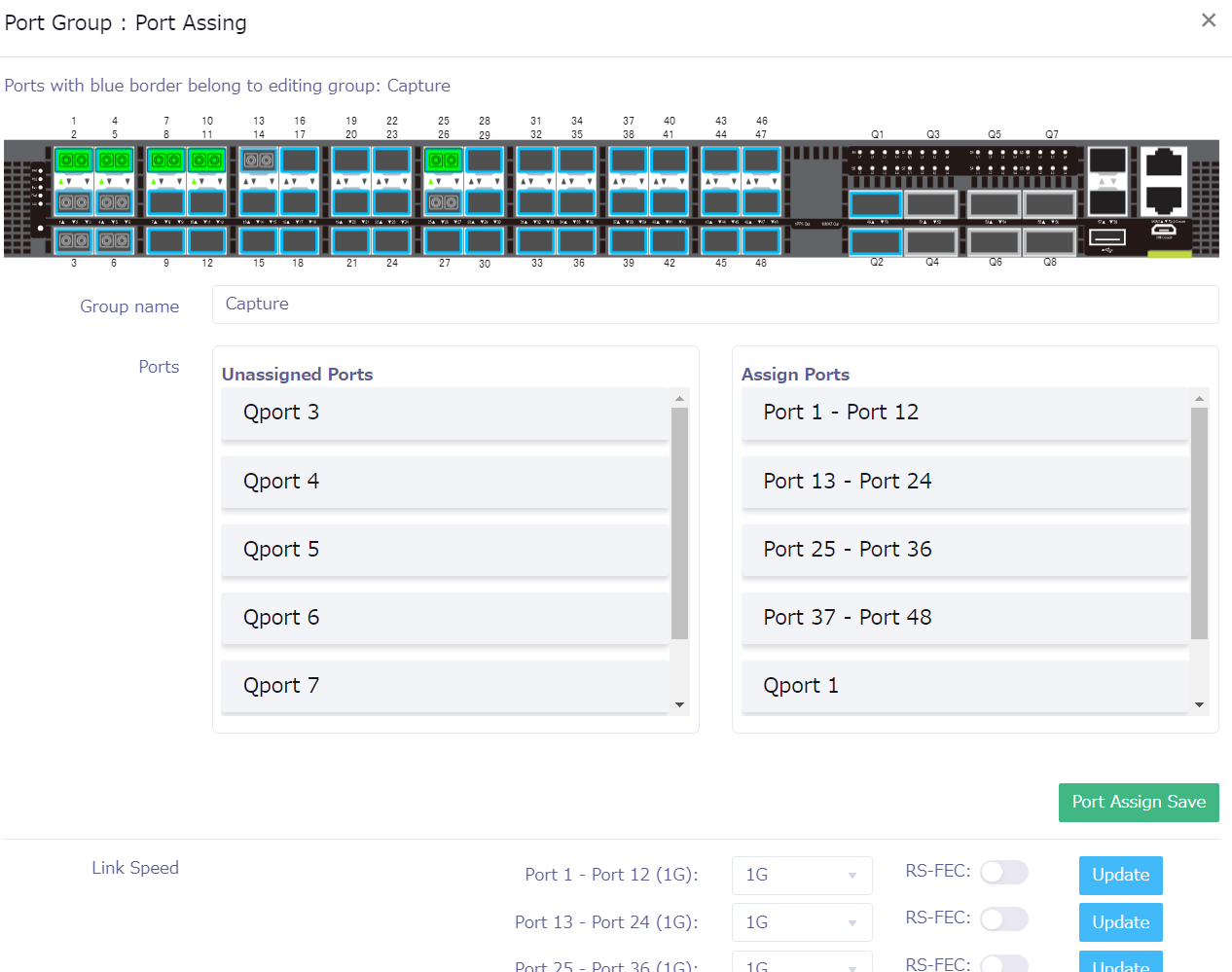

Port Assigning

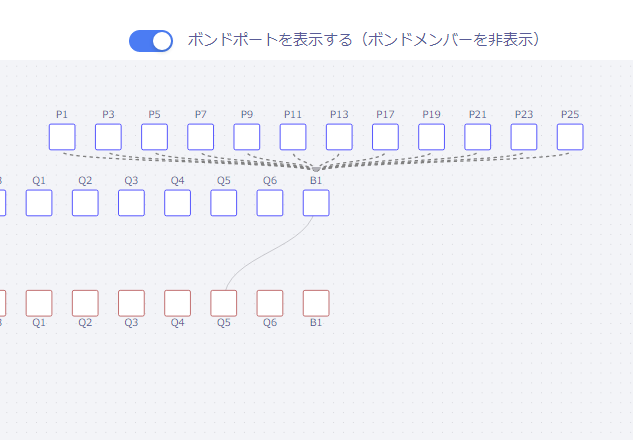

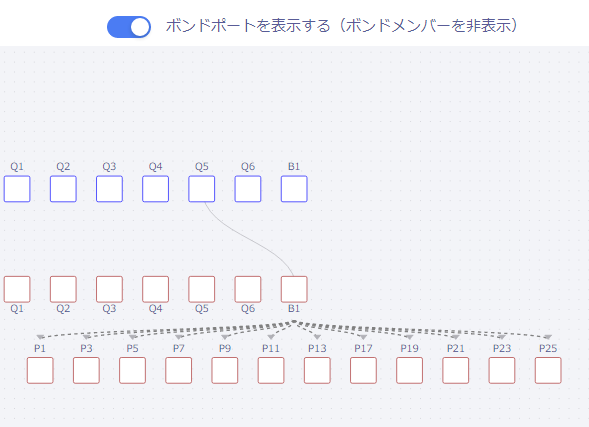

Create Network Port Bonds

Multiple ports can be displayed and configured at once. Both input and output ports can be configured.

bond-network-ports
bond-network-ports2

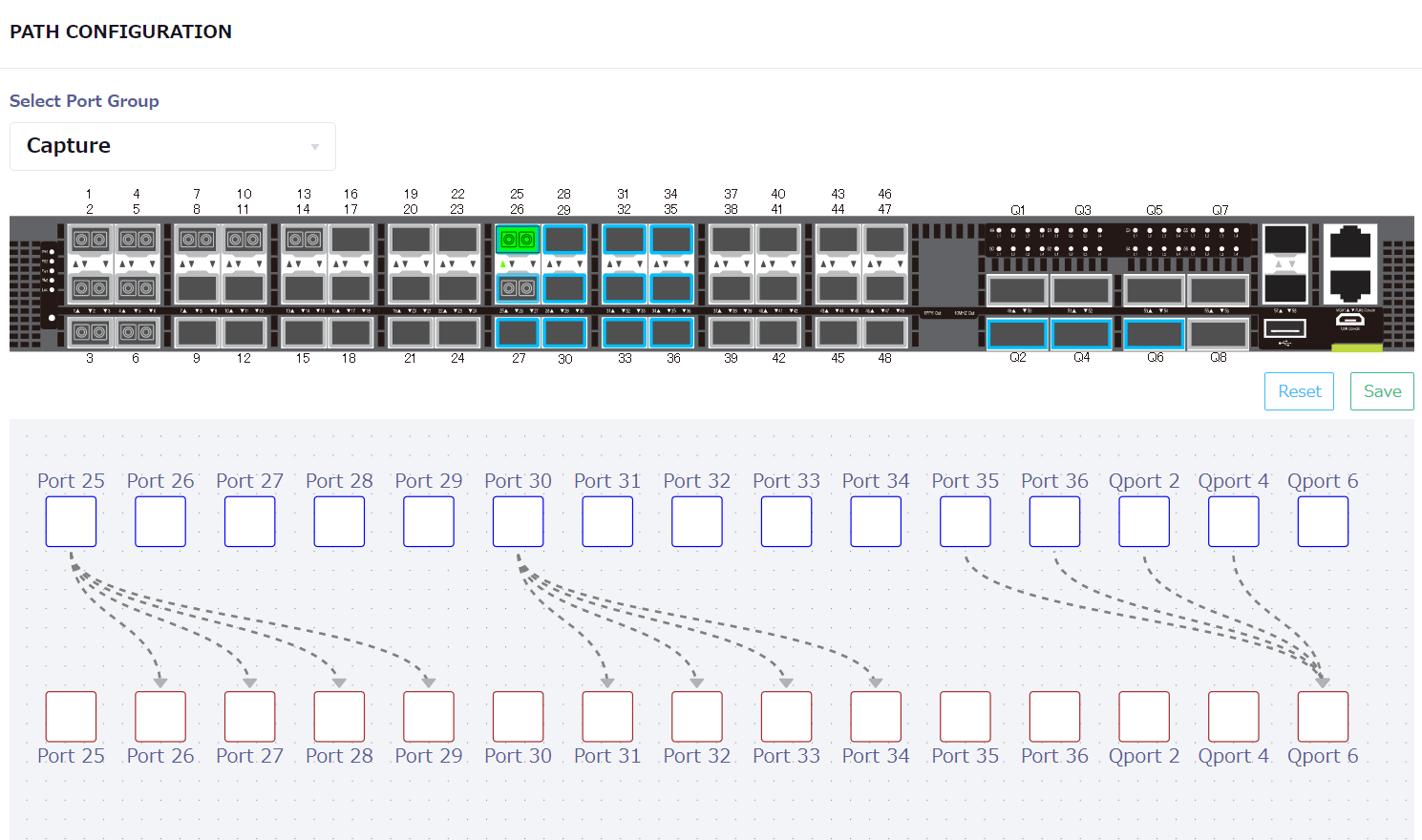

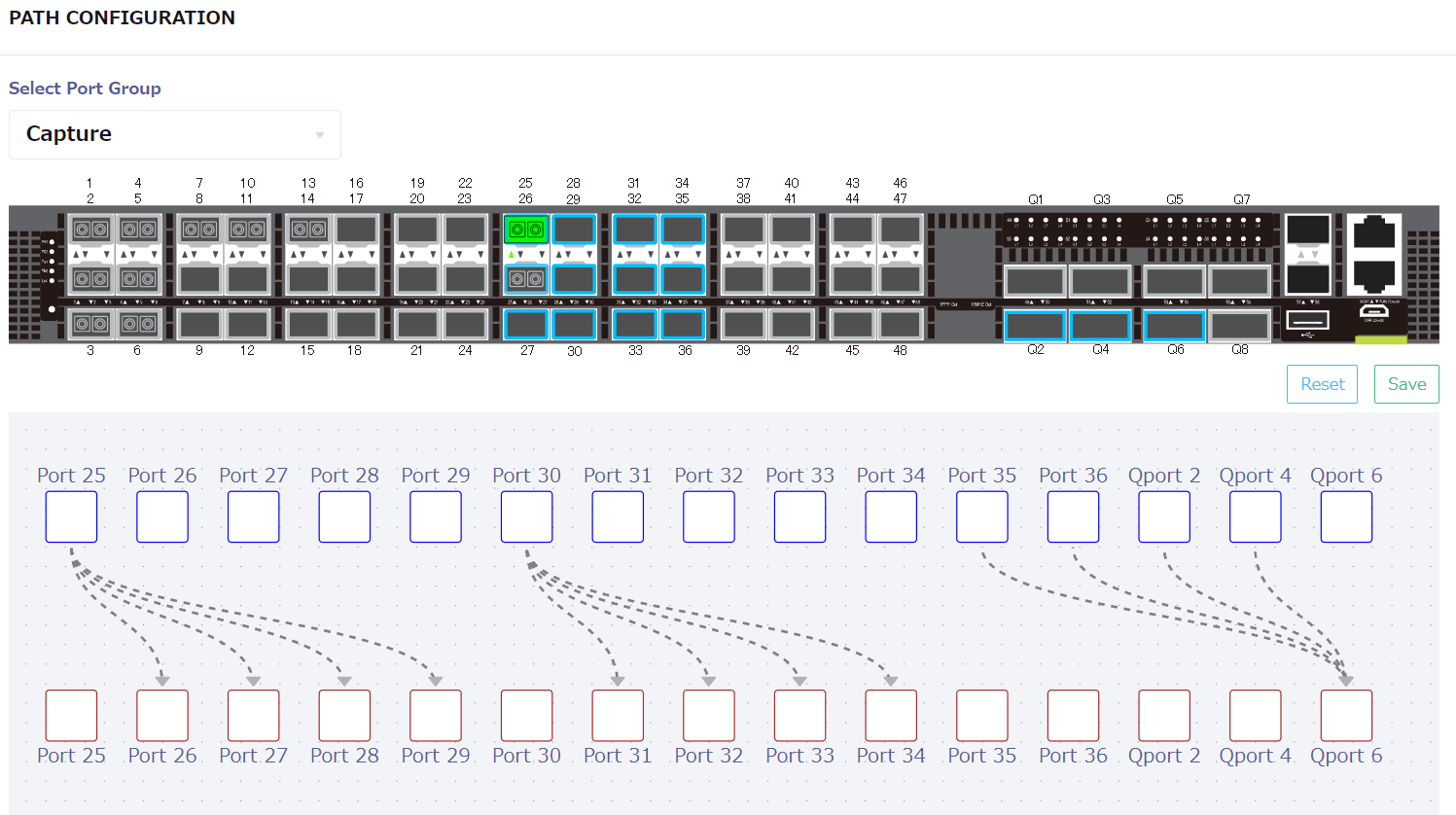

Path Configuration

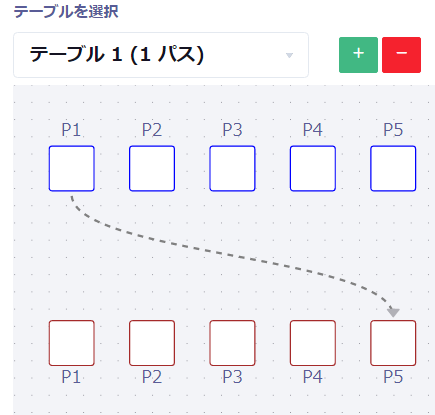

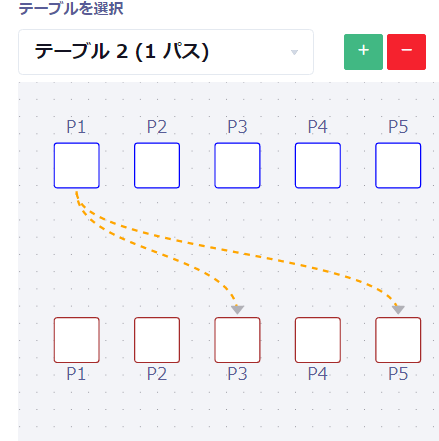

Table Function

It is possible to assign multiple separate settings to the same path. (Output port filter conditions, VLAN tag replacement, Deletion, Addition)

table
table2

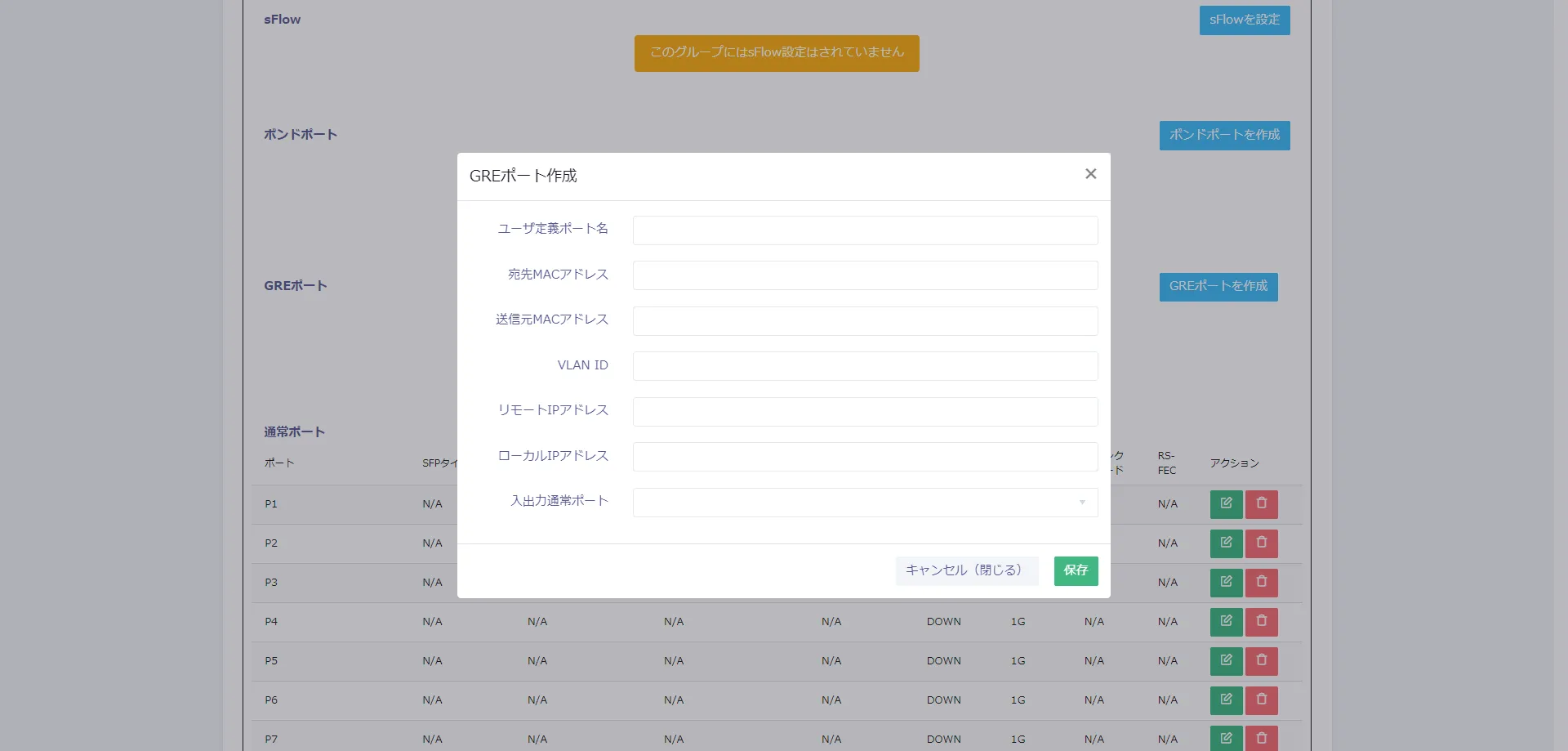

GRE Tunneling

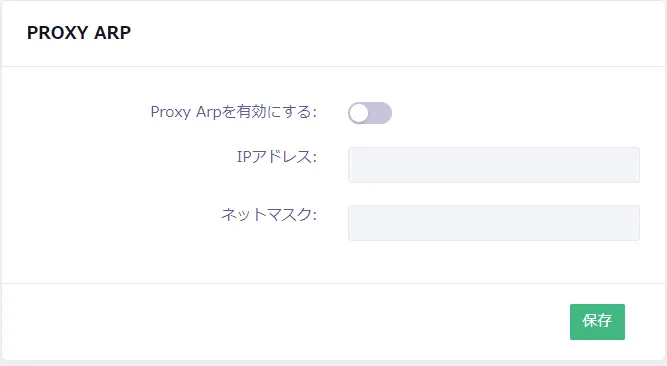

Proxy ARP

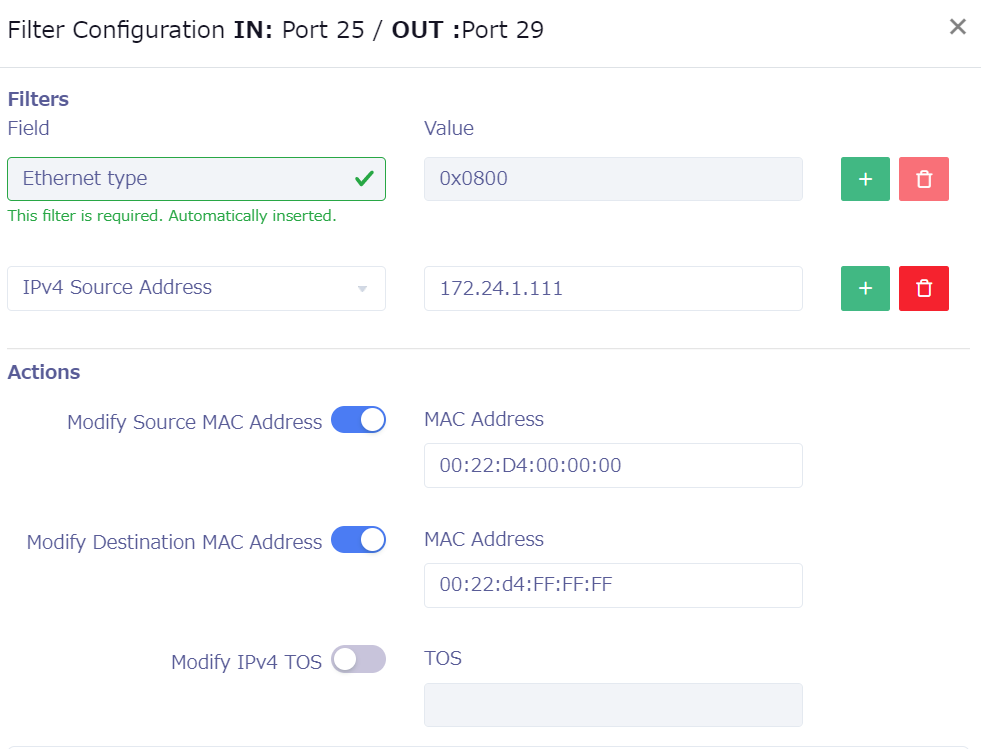

Output Port Filter Configration

Output Port VLAN Tag Replace (ID, PCP), Delete/Add Actions

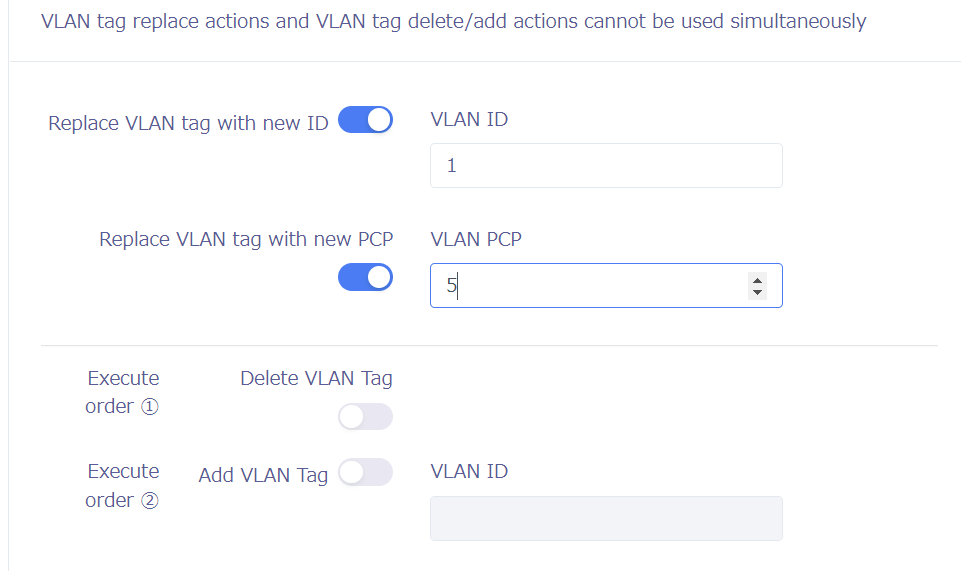

VLAN Tag Replace (ID, PCP)

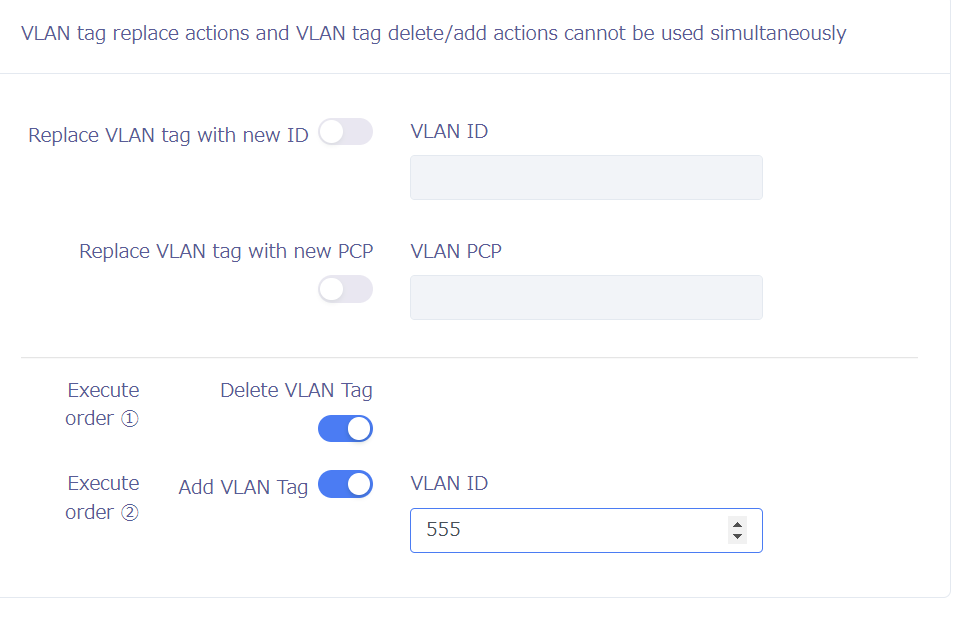

VLAN Tag Delete/Add

Statistics

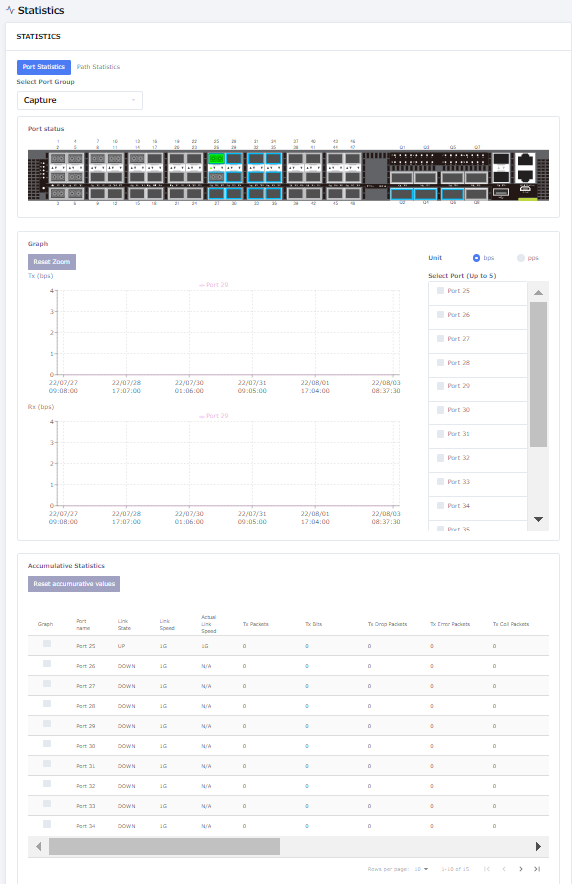

Input/Output Port Statistics

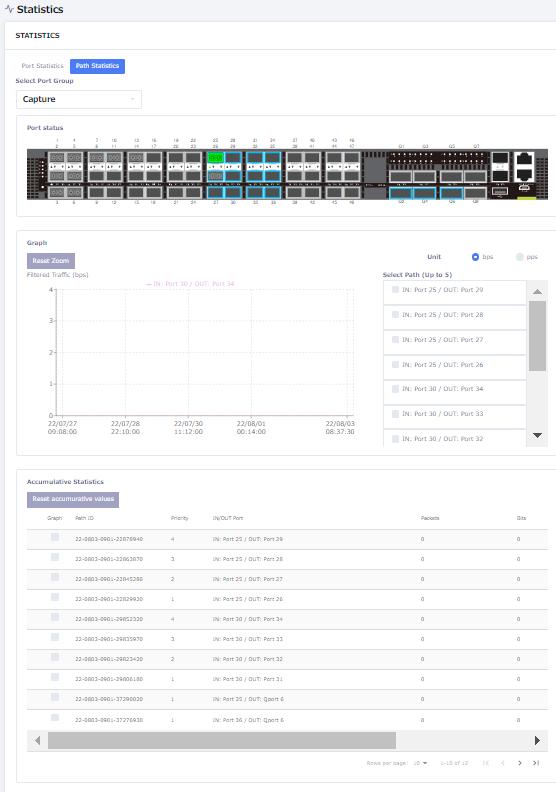

Path Statistics

System Management Functions

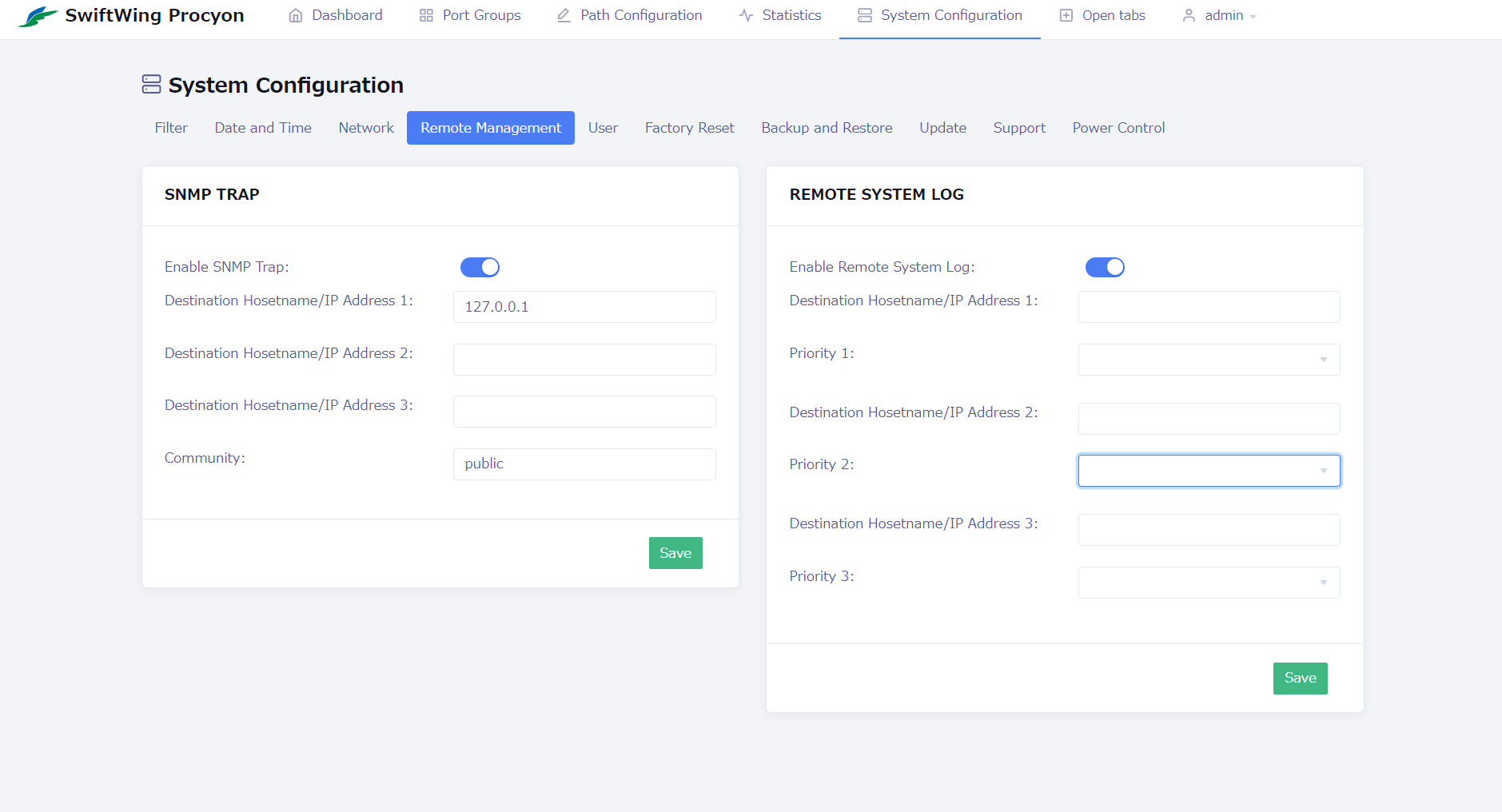

SNMP Trap / Remote Syslog

SW-48T-4X

RJ45(10M/100M/1G) x48ports＋SFP+(10G) x4ports

SW-48X-6Q28

SFP/SFP+(1G/10G) x48ports＋QSFP+(40G)/QSFP28(100G) x6ports

SW-48XT-6Q28

RJ45(1G/10G) x48ports＋QSFP+(40G)/QSFP28(100G) x6ports

SW-48X25-8Q28

SFP/SFP+/SFP28(1G/10G/25G) x48ports＋ QSFP+/QSFP28 (40G/100G) x8ports

SW-32Q28

QSFP+/QSFP28 (40G/100G) x32ports
