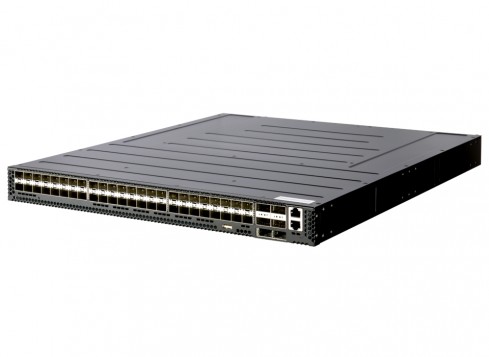

AS5912-54X
AS5912-54X
Edgecore Network Connectivity Open NetworkingDATA CENTER AND SERVICE PROVIDER EDGE SWITCH BARE METAL HARDWARE
- Cost-effective, bare-metal switch infrastructure for data center and carrier access.
- 48 x SFP+ switch ports, supporting 10 GbE (DAC, AOC, 10GBASE-SR/LR) or 1 GbE (1000BASE-T/SX/LX).
- 6 x 100G QSFP28 ports at front
- Expandable packet buffering for carrier access.
- Layer 2 and/or Layer 3 forwarding of 800 Gbps.
- VXLAN and NVGRE tunneling support in hardware for network virtualization.
- Rack mountable in standard 19" racks. Mountable in 21" Open Rack with the Open Rack Switch Adapter.
- Hot-swappable, load sharing, redundant AC or -48 VDC PSUs. 12 VDC power input option.
- Hot swappable 5+1 redundant fan modules.
- Management: Ethernet and console RJ-45 ports; USB storage port.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
- Compatible with Open Network Linux (ONL), the open-source, OCP reference NOS.
- Compatible with OcNOS from IP Infusion.
- Compatible with future version of SnapRoute FlexSwitch.
| Ports | 48 |
| Predominant Port Type | 10GbE SFP+ |
| High Availability | Redundant Power Supply Redundant Fans |
| Compatible Software Option | IP Infusion - OcNOS Open Compute Project - Open Network Linux Linux Foundation - OpenSwitch SnapRoute - FlexSwitch |
Open Networking 10G
AS5900 Series: AS5912-54X
