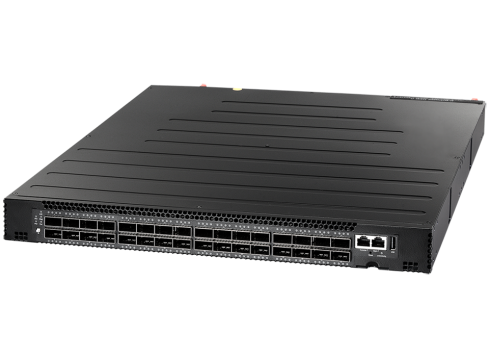

AS7512-32X

Edgecore Network Connectivity Open Networking

Cost-effective, bare-metal switch infrastructure for data center fabric.
Deploy as Top-of-Rack switch supporting 10 or 25 GbE to servers, with 40 or 50 or 100 GbE uplinks.
Deploy as spine switch supporting 40, 50, or 100 GbE ToR and spine interconnects.
32 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GBE, or via breakout cables, 2 x 50 GbE or 4 x 25 GbE or 4 x 10 GbE.
Layer 2 or Layer 3 forwarding of 6.4 Tbps. (full duplex)
Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.
All ports on front; PSUs and fans accessible from rear.
Hot-swappable, load-sharing, redundant AC or -48V DC or 12V DC PSUs.
5+1 redundant, hot-swappable fan modules.
Energy Efficiency: 370 W typical power consumption without pluggable optics.
Bare-Metal hardware switch pre-loaded with diagnostic and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings. Compatible with Open Network Linux (ONL), an open-source, OCP reference NOS.
Supports Switch Abstraction Interface (SAI), the OCP abstraction layer for NOS interface to multi-vendor switch silicons.
Compatible with OpenSwitch the open-source NOS.
Compatible with future release of PicOS™ from Pica8, Inc.

Ports	32
Predominant Port Type	100GbE QSFP28
High Availability	Redundant Power Supply Redundant Fans
Compatible Software Option	Pica8 - PicOS Linux Foundation - OpenSwitch

Open Networking 100G

AS7500 Series: AS7512-32X
