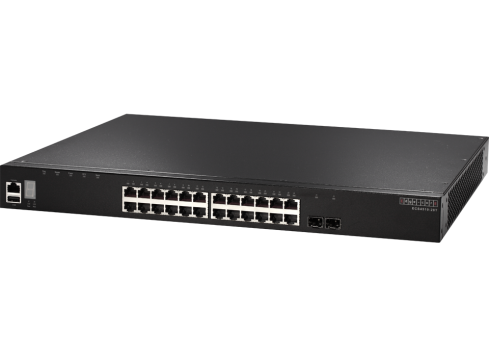

ECS4510-28T

ECS4510-28T

Edgecore Network Connectivity Enterprise Switch

L2+ GIGABIT ETHERNET STACKABLE SWITCH



  • Performance and Scalability with 128 Gbps switching capacity
  • Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol (LACP).
  • G.8032 Ethernet Ring Protection Switching.
  • Comprehensive QoS - Traffic is prioritized according to 802.1p and DSCP, Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
  • Support Three Color Marker and Policing, including 1.Single rate: Committed Information Rate (CIR) 2.Two rate: CIR + Peak Information Rate (PIR) Traffic Policing.
  • Enhanced Security with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), Private VLANs (traffic segmentation per port), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
  • Hardware Stacking
  • Simple Management with an idustry-standard command-line interface (CLI)
  • Layer 3 Features IPv4 Static Route and RIP
Ports 24
Switch Type Fixed Port
Routing/Switching Layer 2 plus
Features Fanless
IPv6 Management
Static Route
Predominant Port Type Gigabit Copper
10 Gigabit Fiber
