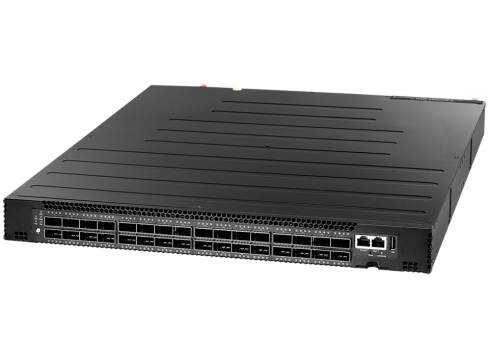

AS7712-32X

AS7712-32X

Edgecore Network Connectivity Open Networking

100GBE DATA CENTER SWITCH





  • Cost-effective, bare-metal switch infrastructure for data center fabric.
  • Deploy as Top-of-Rack switch supporting 10 or 25 GbE to servers, with 40 or 50 or 100 GbE uplinks.
  • Deploy as spine switch supporting 40, 50, or 100 GbE ToR and spine interconnects.
  • 32 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GBE, or via breakout cables, 2 x 50 GbE or 4 x 25 GbE or 4 x 10 GbE.
  • Layer 2 or Layer 3 forwarding of 3.2 Tbps (full duplex).
  • Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.
  • All ports on front; PSUs and fans accessible from rear.
  • Hot-swappable, load-sharing, redundant AC or -48V DC or 12V DC PSUs.
  • 5+1 redundant, hot-swappable fan modules.
  • Energy Efficiency: 310 W typical power consumption without pluggable optics.
  • Bare-Metal hardware switch pre-loaded with diagnostics software and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
  • AS7712 SKU and AS7716 SKU compatible with Open Network Linux (ONL), an open-source, OCP reference NOS.
  • AS7712 SKU compatible with future release of Big Monitoring Fabirc 5.6.0 and later version from Big Switch Networks .
  • AS7712 SKU compatible with Cumulus® Linux® 3.1 and later versions.
  • AS7712 SKU compatible with OpenSwitch the open-source NOS.
  • AS7712 SKU compatible with PicOS™ 2.7.1 and later version from Pica8 Inc.
  • AS7712 SKU compatible with OcNOS™ 1.2 and later version from IP Infusion.
  • AS7712 SKU and AS7716 SKU compatible with SnapRoute FlexSwitch software.
  • AS7716 SKU compatible with Pluribus Open Netvisor® Linux V2.5 or later.
Ports 32
Predominant Port Type 100GbE QSFP28
High Availability Redundant Power Supply
Redundant Fans
Compatible Software Option Cumulus Networks - Cumulus Linux
Big Switch Networks - Big Monitoring Fabric
IP Infusion - OcNOS
Open Compute Project - Open Network Linux
Pica8 - PicOS
Linux Foundation - OpenSwitch
SnapRoute - FlexSwitch
Pluribus Networks - Open Netvisor Linux

Open Networking 100G

AS7700 Series: AS7712-32X
